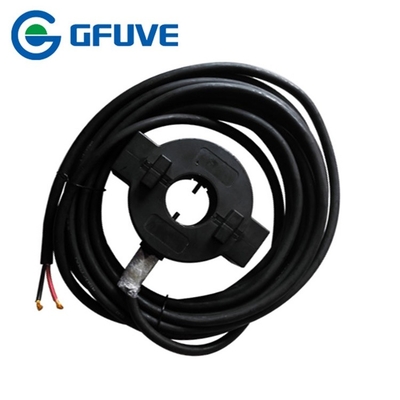

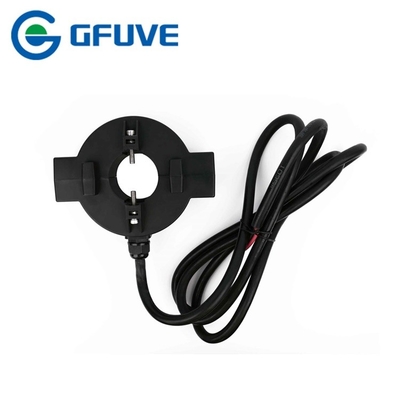

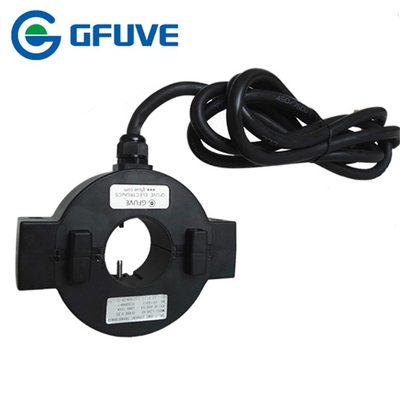

200/5A Outdoor IEC60044-1 Split Core Current Transformer For electricity meter measurement
The 200/5A Outdoor IEC60044-1 Split Core Current Transformer For electricity meter measurement are applicable for AC power system 35kV and measurement of current of power supply equipment below 10KV also can be used for microcomputer protection.
And the Transformer is compatible with Distribution Transformer Monitor and provides high quality power parameter quality signal for the monitor to control, measure and monitor the energy quality and so on in grid system.
The LZCK-55 split core current transformer applies to the outdoor electric power system with frequency 50Hz or 60Hz, its ingress protection is IP68. This type of current transformer employs imported silicon steel which with high permeability as magnetic material, has the characteristics of Small magnetic circuit loss and
can be split, its semicircular core and secondary windings employ high quality epoxy resin vacuum, casting in plastic-case(ABS or PC) which is high accuracy, fire-proof, ultraviolet-proof and explosion-proof, maintenance-free, stable and reliable performance, easy installation, etc.

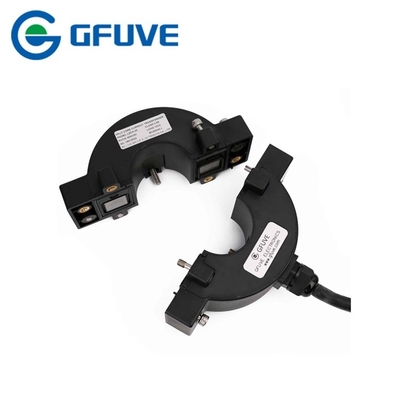

Split Core Current Transformers (CTs) are designed for applications where it is difficult or uneconomical to open the primary conductor to install a solid-core-type current transformer. The split-core design uses silicon steel or polysilicon steel alloy formed into a ring type, hexagonal or rectangular shape.
| Accuracy Class |
0.5S, 0.5%, 1%, 3% (IEC60044-1 standard) |
| Range of primary rated current |
200A |
|
Secondary rated current
|
5A , 1A |
| Range of Rated load |
≤10VA |
Application
Power monitor system
electricity meter measurement
Power meter measurement
Distribution Transformer monitor
energy meter measurement system
PARAMETERS
| Technical parameters |
| Standards |
IEC60044-1; IEC 61869-2; NTC 2205; GB1208-2006; ANSI C57.13 |
| Accuracy Class |
0.5S, 0.5%, 1%, 3% |
| Range of primary rated current |
100-1500A |
| Range of Rated load |
≤10VA |
| Rated frequency |
50/60Hz |
| Rated secondary current |
5A or 1A |
| Rated short-time thermal current |
40kA, 1S |
| Rated continuous thermal current |
150%I1n |
| Secondary winding power frequency withstand voltage |
3kV, 1min |
| Safety Factor Rating |
(FS) <10 |
| Output signal |
1A, 5A, 333mV, 1V or 5V(customized) |
| Cable length |
2.5m, 5m, 10m(customized) |
| Flame retardant ABS plastic shell inside, jaw waterproof apron. |
| Mechanical parameters |
| Aperture (mm) |
Φ55 |
| Dimensions (W×D×H) (mm) |
180×138×52 |
| Weight (kg) |
2 |
| Working conditions |
| Operating temperature |
-35°C to +65°C, not exceeding +40°C |
| Storage temperature |
-40°C to +70°C |
| Ingress Protection |
IP65 |
| Environment |
outdoors or indoors |
| The Height of above sea level |
0- 3000m |
| Conditions |
No existence of severely begrimed, erosive and radioactive gas in the air. Continuous working under the rated current is allowed. |
SELECTION GUIDE
| Model |
Primary rated current |
Rated load |
Aperture (mm) |
Description (mm) |
Weight (kg) |
Material |
Water-proof |
| LZCK-55 |
100-1500A |
≤10VA |
φ55 |
180×138×52 |
2 |
PC |
IP65 |
| LMCK185-10 |
300-3000A |
≤25VA |
φ185 |
350×283×55 |
4.5 |
PC |
IP65 |
| LZCK310-10 |
300-600A |
≤10VA |
φ50 |
φ50 x φ110 x 32 |
1 |
Resin |
silicon case (option) |
| LZCK322-10 |
30-600A |
≤10VA |
φ50 |
φ50 x φ110 x 52 |
1.6 |
Resin |
silicon case (option) |
| LZCK350-10 |
20-600A |
≤25VA |
φ50 |
φ50 x φ110 x 105 |
3.1 |
Resin |
silicon case (option) |
| LZCG530-10 |
30-600A |
≤20VA |
φ45 |
φ45 x φ120 x 65 |
2.1 |
Resin |
silicon case (option) |
