Product Details:

Place of Origin: BEIJING
Brand Name: GFUVE
Certification: ISO9001, CE, UL, KEMA
Model Number: T-209

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Packaging Details: STANDARD EXPORT WOODEN BOX
Delivery Time: 1-2WEEKS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200SETS
Contact Now
Detailed Product Description
Names: Circuit Breaker Analyzer Application: Circuit Breaker Test
Weight: 6kg Funtion: Trigger & Speed, Transducers And Immunity Test
Communication Port: RS232 And USB Test Channel: 12pcs

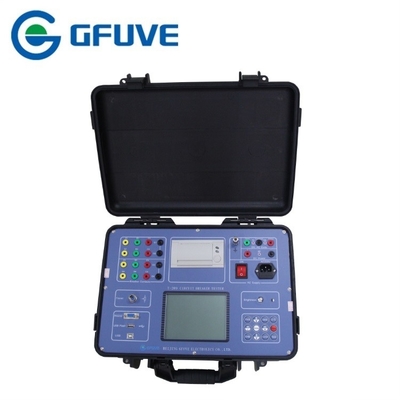

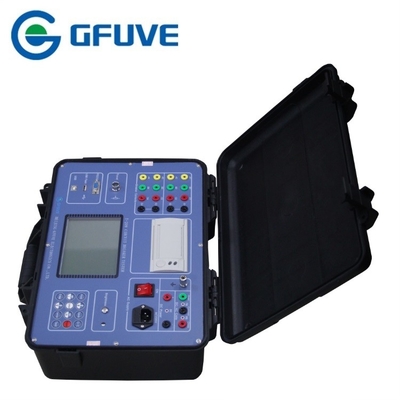

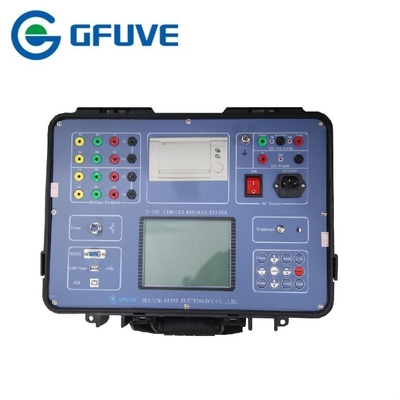

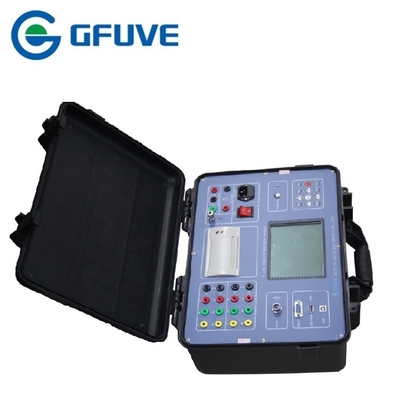

T-209 high voltage portable megger circuit breaker analyzer with USB port and printer



T-209 High voltage Circuit Breaker analyzer can test the vacuum circuit breaker ,sf6, oil circuit breaker, GIS and etc. the test parameters include, close or open time ,delta time ,bounce time ,bounce cycles, multi-operation, stroke , gap ,over-travel ,overshoot ,rebound and the speed, with the ability of test results and graph display.





Function & Features

1. Immunity : withstand the 550KV electrostatic environment .

2. Transducer: with one analog transducer test ability .

3. Standard : with the standard of DL/T846.3—2004 (P.R.C.)

4. Power: with internal dc power ,the voltage ranges from 15v to 250v.

5. Trigger: with four triggers to start the recording ,channels state, voltage, current and transducer.

6. HMI: via keypad and a large transflective LCD display (320 x 240 pixels).

7. Speed: supply series of speed definition with editable and un-editable selection.

8. Recording: with twelve channels ,coil current and transducer .

9. Print: with internal installed 58mm wide thermal printer.

10. Communication: with RS232 and USB communication interface.

11. Memory: with a SD card of 2GB,the maximum storage ability is 100 test results.

12. USB FLASH: USB and RS232 interface for data communication with the PC.

13. Help : the instrument has internal help topic .





Specification

Electrical parameters
Power supply Single phase AC 220V±10% or 110V±10%, 50/60HzAC
Immunity withstand the 550KV electrostatic environment
Test channels 12 channels with 25V,the current is 50mA
Transducer one analog transducer
TIME Recording time length 0~9.9s
Time accuracy ±0.l%reading ± 2 LSB
Resolution 0.1ms
Motion Ranges 0~1000mm
Accuracy ±1% reading ±1LSB
Resolution 0.1mm
Velocity Ranges 0~20.00m/s
Accuracy ±1%reading ±1LSB
Resolution 0.01m/s
DC POWER Ranges 15~260V
Max current 20A
Accuracy ±1%reading ±1LSB
Load change ≤1%
TRIGGER Voltage 15~260V
Current 0.1-20A
Transducer the transducer states changes
Channels channels states changed
Memory SD card of 2GB,the maximum storage ability is 100 test results.
LCD 5.7″black and white LCD display (320 x 240 pixels)
Communication RS232 and USB communication interface
Printer internal installed 58mm wide thermal printer.
Standard DL/T846.3-2004, IEC61010-1, IEC61326-1
Mechanical parameters
Dimension (L×W×H) (mm) 380x262x120
Weight (kg) 6
Environmental conditions
Operating temperature -10°C to 50°C
Storage temperature -20°C to 70°C
Relative humidity ≤95%RH
